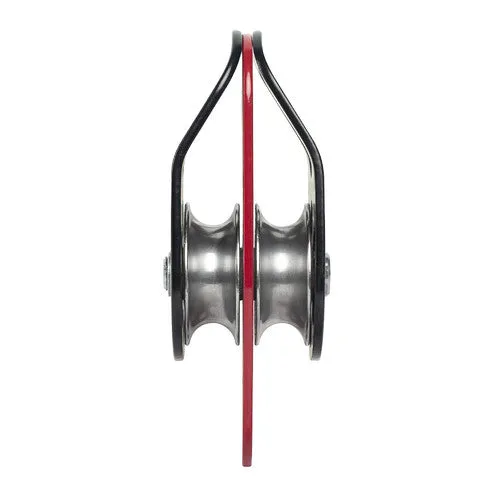

Stainless steel double pulley with steel side plates mounted on steel ball bearings, designed for lifting and lowering loads. Can be used in climbing, alpinism, industrial application, construction and repair work, where the weight of the product does not play a significant role. The stainless steel sheaves features high durability and high wear resistance.
It can be used with rope and steel cable up to 12mm in diameter. Increased service life due to the use of stainless steel.
The steel ball bearings provide smooth and uniform sliding of the sheaves, increasing the efficiency up to 90%.
- Max rope or steel cable diameter: 12 mm
- Weight: 280g
- Max working load: 1.25 kN х 4 = 5 kN
- Minimum breaking strength: 5.5 kN x 4 = 22 kN
- Steel ball bearings
- Material: steel side plates and stainless steel sheaves
- Standard: EN 12278
